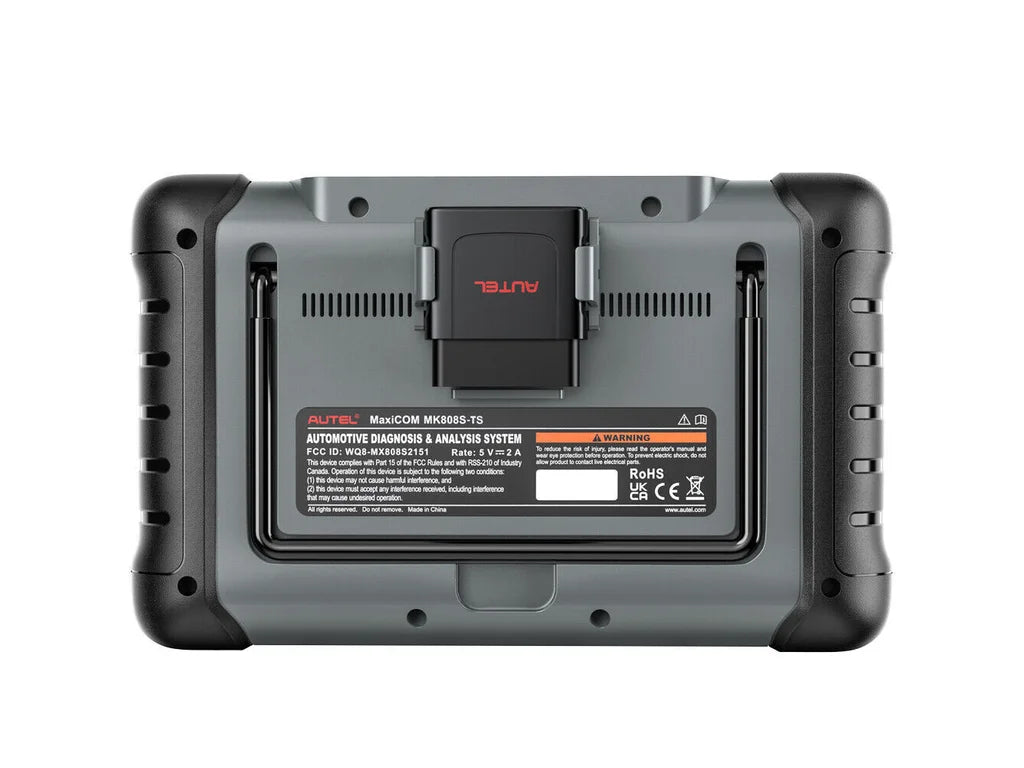

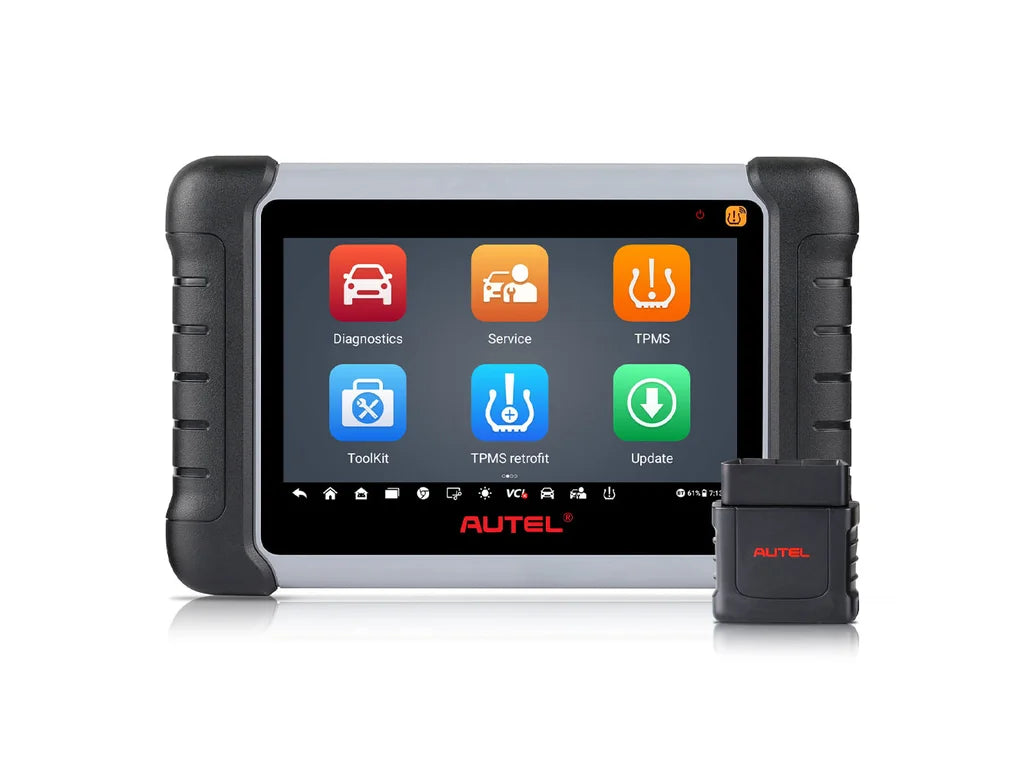

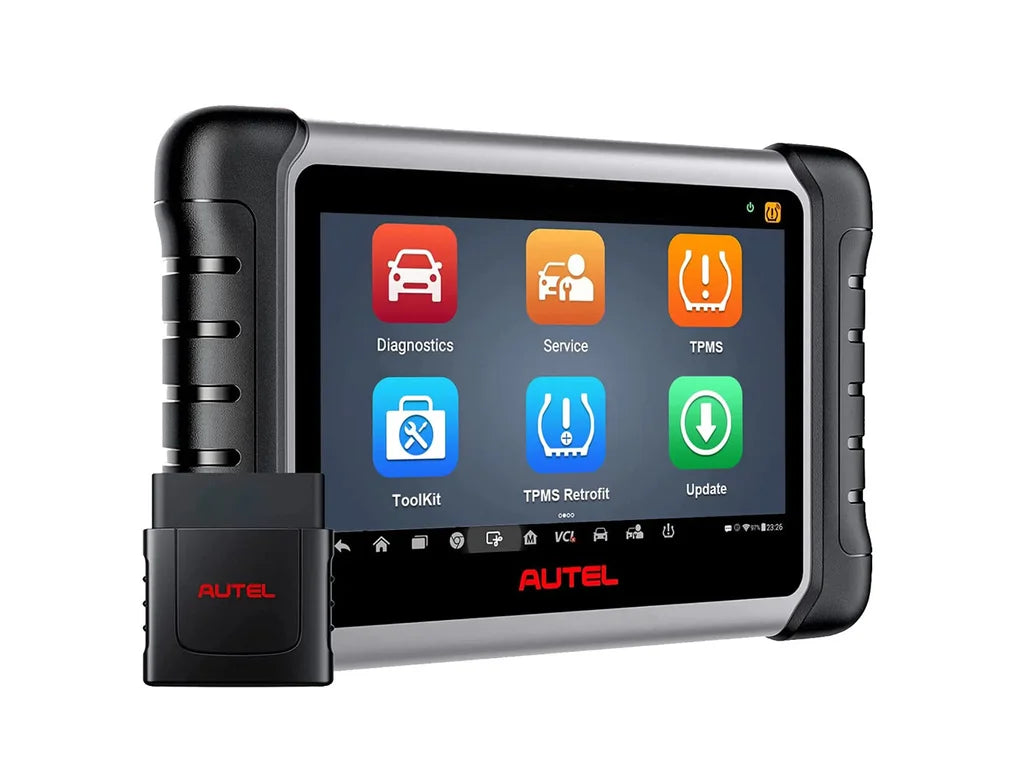

AUTEL MaxiCOM MK808S-TS – diagnostic and TPMS tool

AUTEL MaxiCOM MK808S-TS combines full-system diagnostics from the MK808 series with a complete TPMS workflow. It is a practical choice for a workshop that, in addition to general diagnostics, regularly replaces, checks, and programs tire pressure sensors.

Diagnostic Functions

• reading and clearing control unit fault codes
• displaying live data
• reading control unit information and vehicle data
• bidirectional active tests on supported vehicles
• AutoVIN and automatic vehicle identification
• OBD-II/EOBD diagnostics and readiness tests

Common Service Functions

• oil change and service interval reset
• EPB electronic parking brake service
• SAS steering angle sensor reset
• BMS battery registration and reset
• DPF regeneration
• injector coding
• ABS bleeding, throttle body/adaptation resets, and other service procedures depending on the vehicle

TPMS Functions

• TPMS sensor activation and status check
• reading sensor ID, pressure, temperature, and battery information on supported sensors
• AUTEL MX-Sensor programming
• TPMS relearn and sensor ID pairing on supported vehicles
• TPMS control unit diagnostics

Why Choose the MK808S-TS?

Choose the TS version when TPMS is genuinely part of your daily work. Compared with the standard MK808 series, tire pressure sensor programming is integrated into the device.

Vehicle Coverage

Technical Specifications

• Android 11
• 4 GB RAM / 64 GB storage
• 7-inch 1024 × 600 touchscreen
• wireless VCI

Free software updates: 1 year
Warranty: 12 months

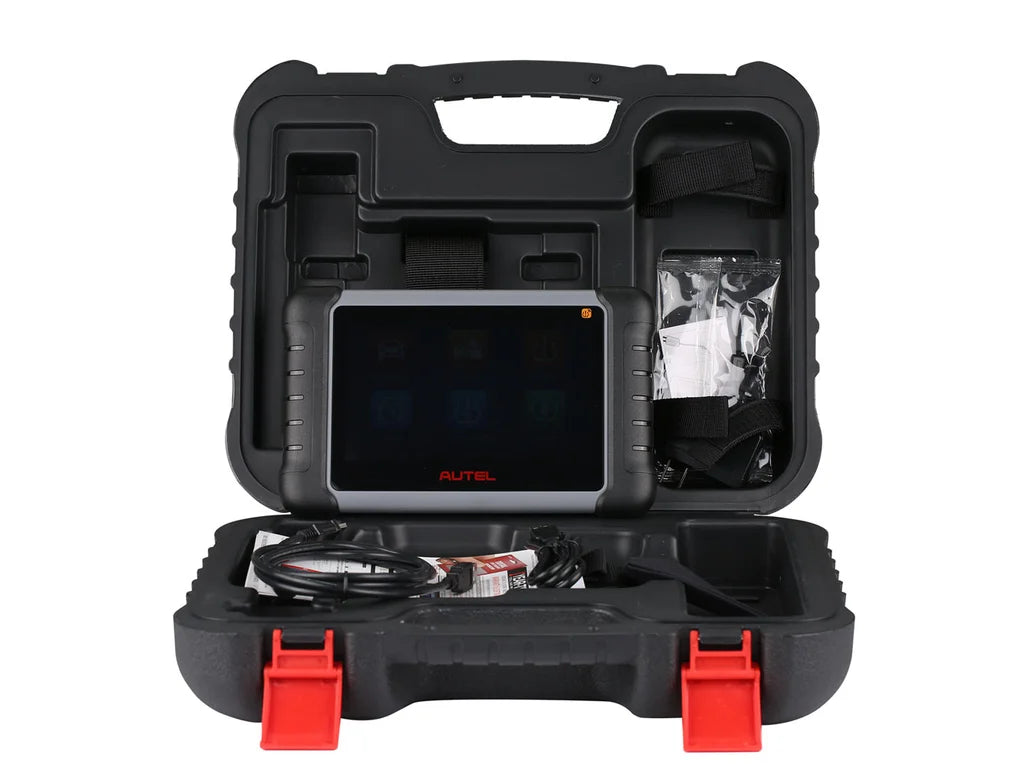

Package Contents

• AUTEL MaxiCOM MK808S-TS

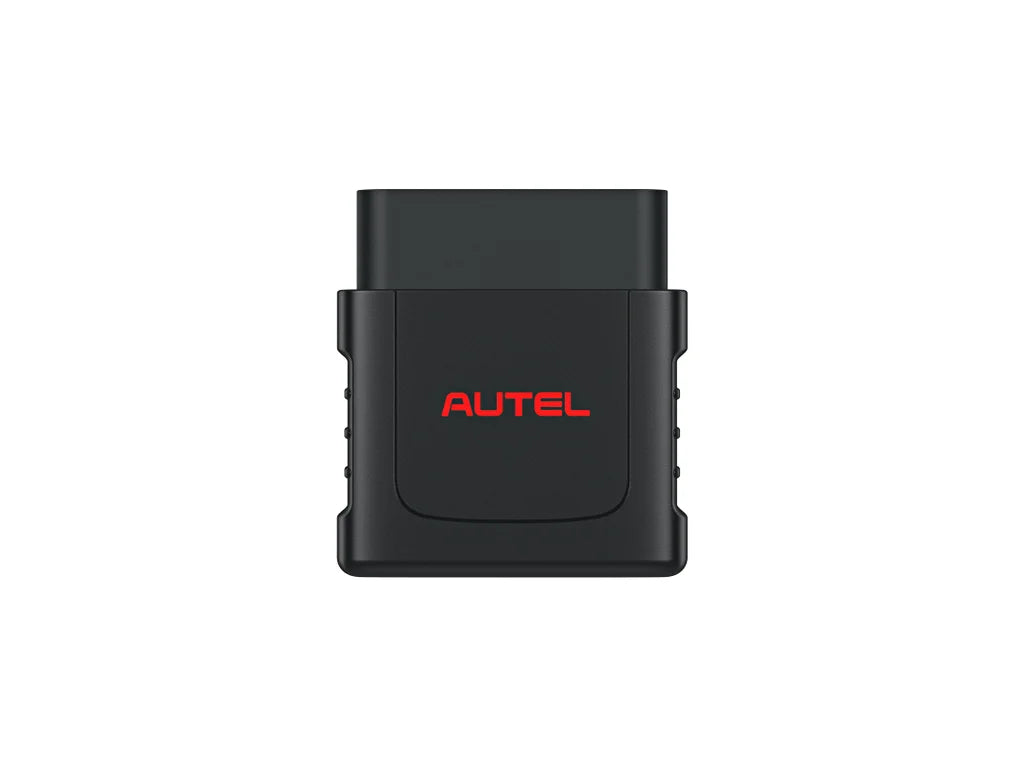

• Wireless VCI
• OBD2 main cable
• Interface with TPMS programming function
• USB cable and power adapter

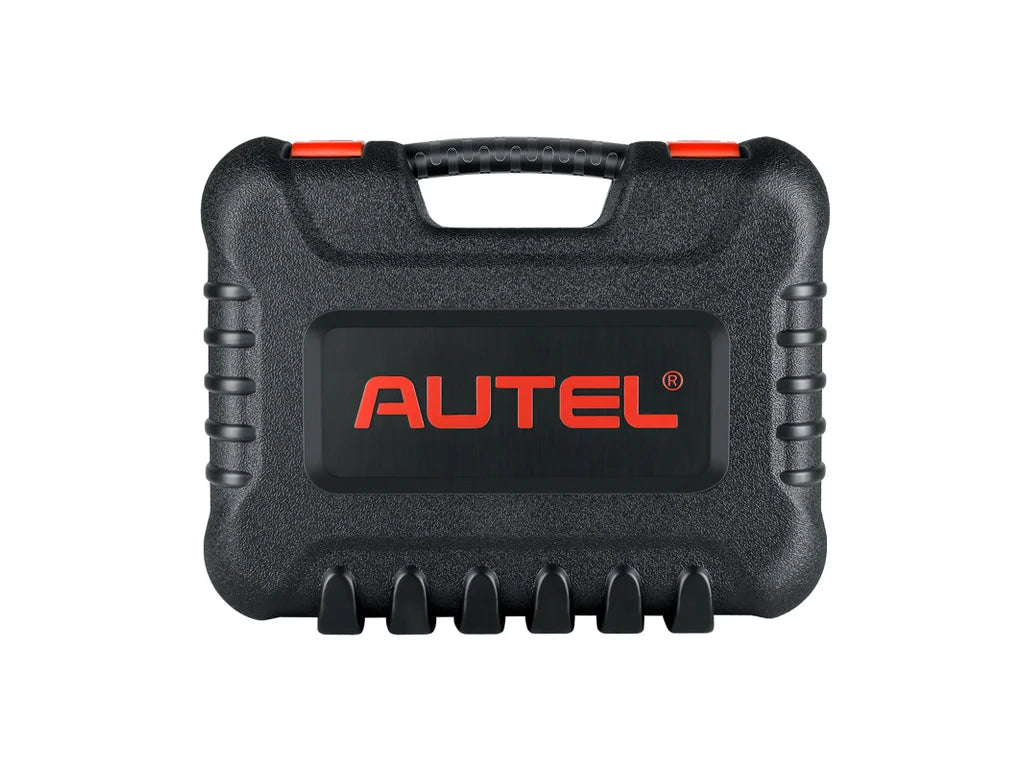

• Carrying case
• User manual

Compatibility

Basic OBD2 diagnostics are compatible with all passenger cars supporting OBD2/EOBD. In Europe, the OBD2/EOBD standard is generally used in gasoline vehicles from 2001 onward and diesel vehicles from 2004 onward. For older vehicles, it is advisable to check OBD2/EOBD support separately.
